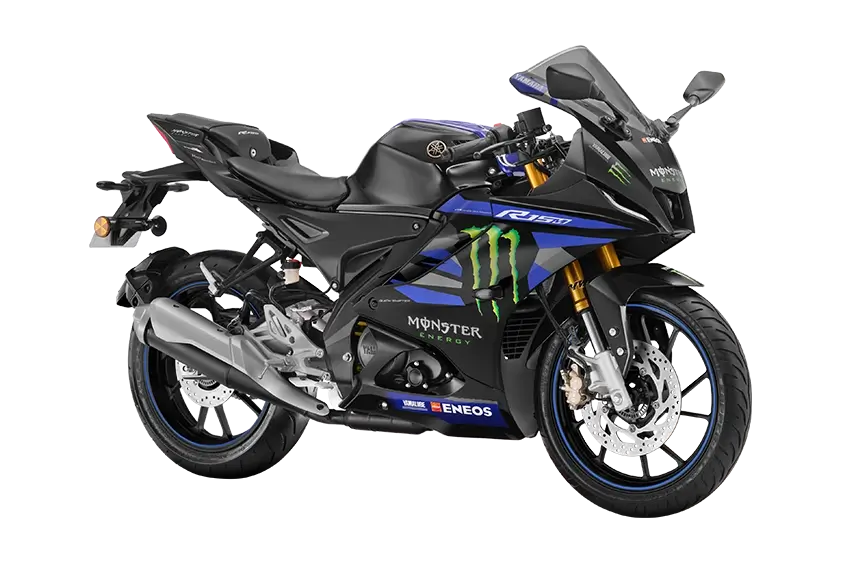

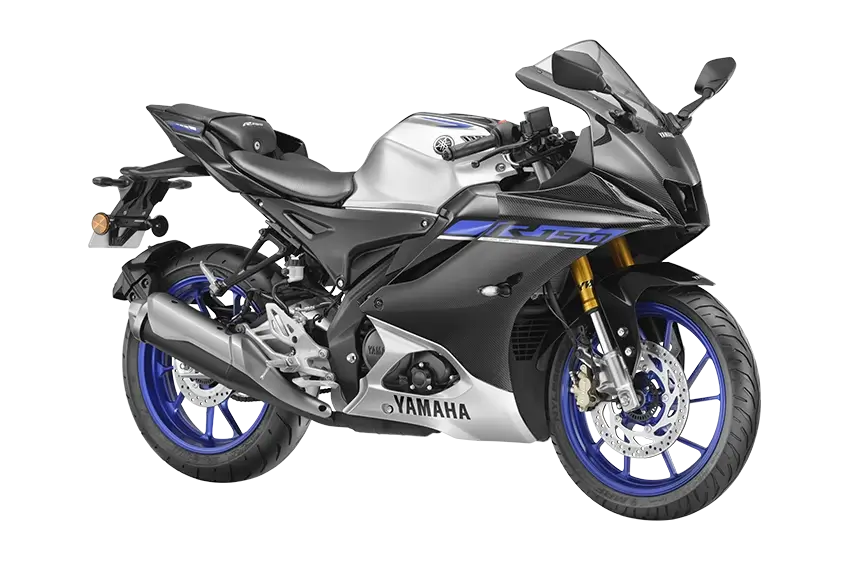

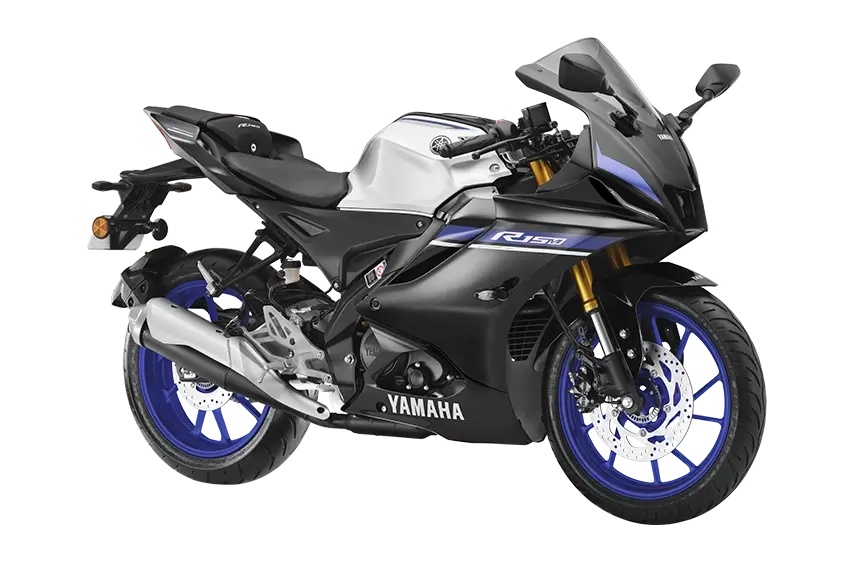

Colors of Yamaha R15M in Madurai

Specifications of Yamaha R15M in Madurai

Engine Type

Liquid-cooled, 4-stroke, SOHC, 4-valve

Compression Ratio

11.6 : 1

Clutch Type

Wet, Multiple Disc

Maximum torque

14.2 Nm (1.4 kgfm) @7,500 RPM

Displacement

155 CC

Maximum horse power

13.5kW(18.4PS)/10000 RPM

Transmission type

Constant mesh, 6-speed

Fuel System

Fuel Injection

Bore & Stroke

58.0 mm × 58.7 mm

E20 Compatible

Yes

Starter System

Electric starter

Overall length

1,990 mm

Minimum ground clearance

170 mm

Wheelbase

1,325 mm

Overall Width

725 mm

Kerb Weight (with oil and full fuel tank)

141 kg

Fuel tank capacity

11 L

Overall Height

1,135 mm

Seat height

815 mm

Frame type

Deltabox

Brake type (Front)

Disc brake (282 mm)

Tyre size (rear)

140/70R17M/C 66H - Radial Tubeless

Front suspension system

Telescopic Upside Down Fork (USD Fork)

Brake type (Rear)

Disc brake (220 mm)

Inner tube (diameter of front fork)

37.0 mm

Rear suspension system

Linked-Type Monocross Suspension

Tyre size (front)

100/80-17M/C 52P - Tubeless

ABS

Dual Channel

Color TFT Meter

Equipped

Battery

12 V, 4.0 Ah

Brake/tail light

LED

Fuel meter

Digital

Fuel consumption indicator

Equipped

Clock

Digital,auto adjust with smartphone connectivity

Quick shifter(up-shift)

Equipped

Turn By Turn Navigation & Music Control

Equipped

Headlight

Bi-functional LED (Class D)

Speedometer

Digital

Side stand engine cut-off switch

Equipped

Gear position indicator

Equipped

VVA

Equipped

Traction control system

Equipped

Y-Connect (Smartphone Bluetooth Connectivity)

Equipped

Position light

LED

Tachometer

Digital

Dual horn

Equipped

Shift timing light

Equipped

Riding Modes

Track Mode / Street Mode
