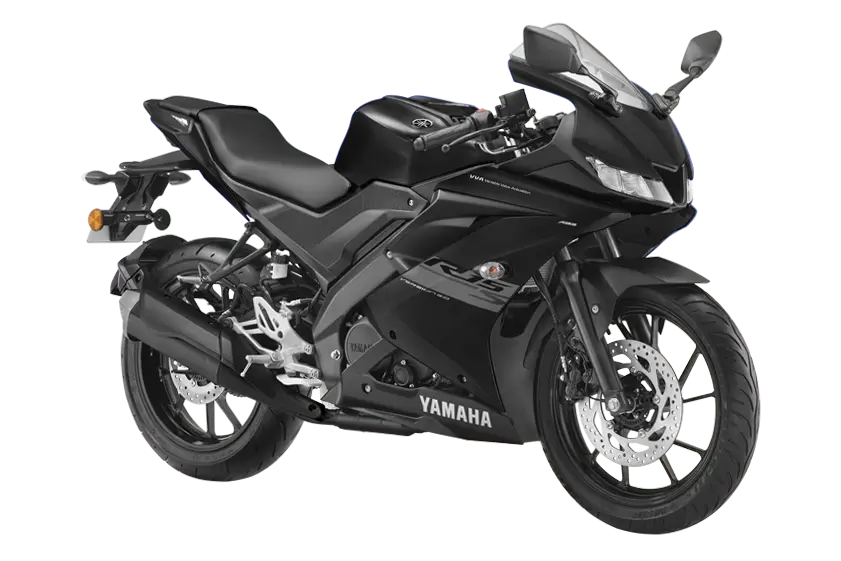

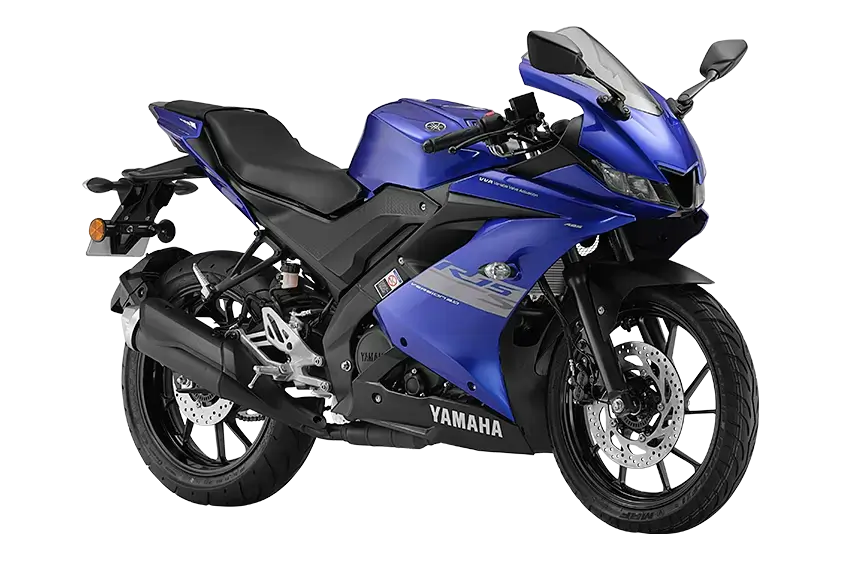

Colors of Yamaha R15S in Madurai
Specifications of Yamaha R15S in Madurai
Engine Type
Liquid-cooled, 4-stroke, SOHC, 4-valve
Compression Ratio
11.6 : 1
Clutch Type
Wet, Multiple Disc
Maximum torque
14.2 Nm (1.4 kgfm) @7,500 RPM
Displacement
155 CC
Maximum horse power
13.5kW(18.4PS)/10000 RPM
Transmission type
Constant mesh, 6-speed
Fuel System
Fuel Injection
Bore & Stroke
58.0 mm × 58.7 mm
E20 Compatible
Yes
Starter System
Electric starter
Overall length
1,990 mm
Minimum ground clearance
170 mm
Wheelbase
1,325 mm
Overall Width
725 mm
Kerb Weight (with oil and full fuel tank)
142 kg
Fuel tank capacity
11 L
Overall Height
1,135 mm
Seat height
815 mm
Frame type
Deltabox
Brake type (Front)
Disc brake (282 mm)
Tyre size (rear)
140/70R17M/C 66H - Radial Tubeless
Front suspension system
Telescopic Fork
Brake type (Rear)
Disc brake (220 mm)
Inner tube (diameter of front fork)
41.0 mm
Rear suspension system
Monocross (link suspension)
Tyre size (front)
100/80-17M/C 52P - Tubeless
Battery
12 V, 4.0 Ah
Brake/tail light
LED
Fuel meter
Digital
Fuel consumption indicator
Equipped
VVA indicator
Equipped
Side stand engine cut-off switch
Equipped
Headlight
LED
Speedometer
Digital
ABS
Dual channel ABS
Gear position indicator
Equipped
Clock
Digital
Auxiliary light
LED
Tachometer
Digital
Dual horn
Equipped
Shift timing light
Equipped
VVA
Equipped
